Annotate an image

Plugin Annotation (for jpg Images)

Use this wiki plugin, introduced in Tiki2, to annotate screenshots or other images. The part of the image that the annotation refers to is highlighted with a red border and the annotation text is placed under the image. This plugin was revamped for Tiki15 and new options were added.

Screenshot

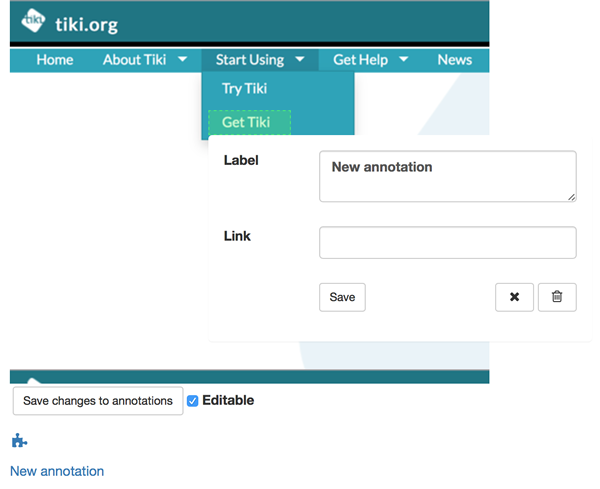

Here's a screenshot of the plugin in action showing the edit interface that pops up after the annotated section has been clicked (the green border shows the section has been clicked).



Tiki15 Pluginimageannotation Sample

Parameters

Annotate an image
Introduced in Tiki 2. Required parameters are in bold.
Go to the source code
Preferences required: wikiplugin_annotation

Parameters Accepted Values Description Default Since
(body of plugin) Autogenerated content. Leave blank initially.
height digits Image height in pixels. 3.0
src url Absolute URL to the image, relative path from Tiki site root or an image from the file gallery display1 3.0
width digits Image width in pixels. 3.0
class text Class of the containing DIV element. 15.0
align (blank)
left
right
center
Image alignment. left 2.0
showlink (blank)
y
n
Show the link below the label in the popups. (y/n) n 15.0
showlist (blank)
y
n
Show the list of annotations below the image. (y/n) y 15.0

Example

See: PluginAnnotation example
