Plugin PivotTable

Introduced in Tiki 16.2

Parameters

Notes on aggregateDetails:

• The aggregateDetails accepts multiple field names or permNames separated by colon.
• The aggregateDetails parameter is also enabled by default and can be disabled setting aggregateDetails to an empty string.
• Each item has the associated object_link available by default and clickable in the popup where the aggregateDetails field data is shown.
  • It will work with other unified search index content entries (not only tracker items) but might be slow for large result sets.
  • It is only activated if aggregateDetails is not disabled. Therefore, there is a workaround to disable this feature for large sets of data (e.g. containing several or hundreds of thousands of items).

Basic Usage

Basic usage requires just to provide the data source (e.g. a tracker with id 1: "tracker:1" since Tiki16, or activitystream also since Tiki19 ), and the rest will be taken as default values by the pivot table plugin, and you will be able to edit it through the PivotTable UI itself. That will allow you to display all field names of the tracker, and will let you drag and drop them in rows or columns of the pivot table editor.

That will cover most use cases. However, if your dataset is huge, or the tracker has many fields, and some of them carrying heavy data (long text fields, or big files/images attached to the tracker items in files tracker fields), you can use an advanced syntax to filter the number of items or reduce the amount of tracker fields exposed to the pivot table to work with, so that performance of the pivot table plugin is fast again. See below for "Advanced Usage"

Example 1

After installing the Bug_Tracker_16 profile on a brand new Tiki 16, you will get a new tracker with id 1 to hold the data of the bug reports/issue tickets. When you add a few dozen items, you can use some syntax like the one indicated below to produce some demo pivot tables table with default values as a starting point, to let you start reviewing the data as wiki-wiki (quick) as possible.

This code:

{pivottable data="tracker:1"}

Would produce with the data from that profile (at the time of this writing):

Click to expand

Once saved, you can click on any cell of the pivottable report, and you will be shown a popup with the information tracker items that produced the count for that cel, with a link to view the full record of each of the tracker items.

Click to expand

From there we can edit the Pivottable again through the PivotTable UI itself, and modify the variables to be used as row or column data, or add new variables in columns, change the type of table or chart produced, etc.

A table can even consider more than one value in a single dimension. The following example therefore uses both Status and Priority on the horizontal axis (meaning a column can have subcolumns):

Click to expand

Example 2

A default configuration for each parameter of the plugin can also be specified. For instance, the values considered in both dimensions can be specified, using the rows and cols parameters, as in the following example (which considers 2 values on the horizontal axis, as in the previous screenshot).

This code:

{PIVOTTABLE(data="tracker:1" width="100%" height="500px" rows="bug_tracker_severity" cols="bug_tracker_bug_status:bug_tracker_priority" rendererName="Heatmap" aggregatorName="Count as Fraction of Columns" vals="bug_tracker_priority")} {PIVOTTABLE}

Would produce with the data from that profile (at the time of this writing):

Click to expand

Example 3

You can also make some charts:

• Line Chart
• Bar Chart
• Stacked Bar Chart
• Area Chart
• Scatter Chart

For instance...

This code:

{PIVOTTABLE(data="tracker:1"  width="400px" height="300px" rows="bug_tracker_severity" cols="bug_tracker_bug_status" rendererName="Stacked Bar Chart" aggregatorName="Count")}
{PIVOTTABLE}

Would produce:

Click to expand

Example 4 (subtotals since Tiki 1😎

Since Tiki18 new renderers were added to allow displaying subtotal sums for rows in the table, through the addition of subtotal.js to the plugin:

• Table With Subtotal
• Table With Subtotal Bar Chart
• Table With Subtotal Heatmap
• Table With Subtotal Row Heatmap
• Table With Subtotal Col Heatmap

Click to expand

If you click on the triangle at the left of each row name ("Severity" values, in this example), you will get the options of the next column ("Bug Status", in this example) contracted, hiding the different values of this other column, and showing only the subtotals for the field where you first clicked at (a "severity" value, or the whole column "Severity").

Click to expand

Example 5 (activity stream since Tiki19)

Since Tiki19, you can display data from the Activity Stream into the Plugin PivotTable.

Minimum syntax to let the user choose options throught the PivotTable UI:

{pivottable data="activitystream"}

Example:

{pivottable data="activitystream" rows="object:type" cols="modification_date" width="100%" height="1000px" rendererName="Bar Chart" aggregatorName="Count" inclusions="{}" menuLimit="500" aggregateDetails="object_type"}

Advanced Usage

If your dataset is huge (many thousands), or the tracker has many fields (many hundreds), and some of them carrying heavy data (long text fields, or big files/images attached to the tracker items in files tracker fields), you can use an advanced syntax to filter the number of items or reduce the amount of tracker fields exposed to the pivot table to work with, so that the good performance of the pivot table plugin is preserved.

You can use the filter or display commands (both from PluginList ) to indicate which items (filter) or tracker fields (display) you want to use, respectively, in the pivot table plugin.

See:

• PluginList filter control block
• PluginList display control block

Add creation_date, modification_date and status

You can also indicate if you want the creation_date, modification_date and status if the tracker items to be displayed as optional variables to be used in the report.

{display name="creation_date" format="datetime"}
{display name="modification_date" format="datetime"}
{display name="tracker_status"}

Customize aggregation date values

You can also customize the date format of these dates to show only the date, not the time, for instance, And also:

• only the day number of the month with %d , or
• only the day number of the year with %z , or
• only or the week number of the year with %W , or
• only the month number with %m , or
• only the year with %Y , etc

This way, you can get the aggregated values of interest for your report.

Example of code to display only the month number from these dates so that you can draw charts with counts per month, etc:

{display name="creation_date" format="date" dateFormat="%m"}
{display name="modification_date" format="date" dateFormat="%m"}

Full list of codes available here:
http://php.net/manual/en/function.date.php

Advanced Example 1

This code:

{PIVOTTABLE(data="tracker:4" rows="bug_tracker_submitted_by:bug_tracker_severity:" cols="bug_tracker_bug_status:bug_tracker_priority:" rendererName="Heatmap" aggregatorName="Count as Fraction of Total")}
   {display name="tracker_field_bug_tracker_submitted_by" default=""}
   {display name="tracker_field_bug_tracker_severity" default=""}
   {display name="tracker_field_bug_tracker_bug_status" default=""}
   {display name="tracker_field_bug_tracker_priority" default=""}
   {display name="tracker_field_bug_tracker_version" default=""}
{PIVOTTABLE}

Would produce with the data from that profile (at the time of this writing):

Click to expand

And once you click at the Edit Pivot Table button, you would see the controls to edit variable selection, but notice that you have less amount of variables to choose from than before; only the ones you have selected in the display commands of the plugin body above:

Click to expand

Advanced example 2

This code:

{PIVOTTABLE(data="tracker:4" rows="bug_tracker_submitted_by:bug_tracker_severity:" cols="bug_tracker_bug_status:bug_tracker_priority:" rendererName="Heatmap" aggregatorName="Count as Fraction of Total")}

   {filter field="tracker_field_bug_tracker_bug_status" content="new"}

   {display name="tracker_field_bug_tracker_submitted_by" default=""}
   {display name="tracker_field_bug_tracker_severity" default=""}
   {display name="tracker_field_bug_tracker_bug_status" default=""}
   {display name="tracker_field_bug_tracker_priority" default=""}
   {display name="tracker_field_bug_tracker_version" default=""}
{PIVOTTABLE}

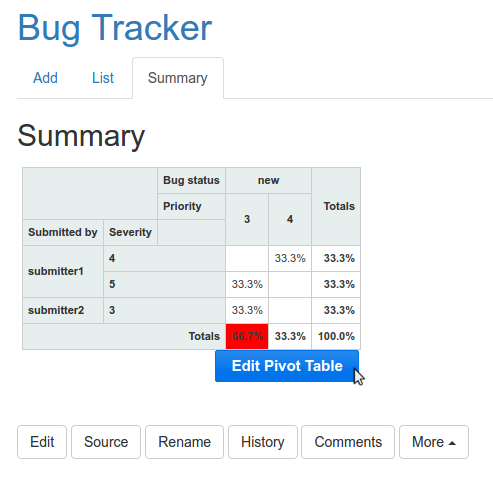

Would produce the same as before, but restricting the data set to only those items tagged as new bugs (bug status is "new"):

Click to expand

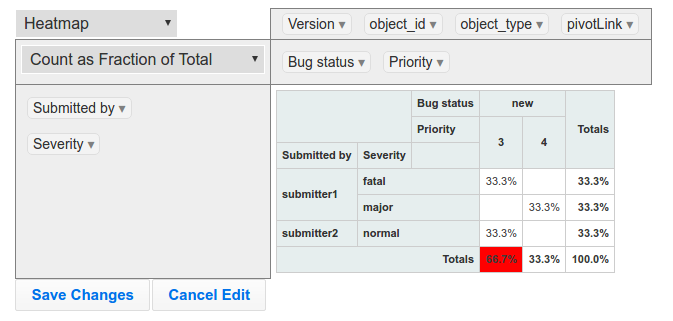

Again, if you edit the pivot table, you will see that also have the restricted the number of fields, as well as the data points, that comply with your filtering criteria:

Click to expand

Advanced example 3

Since Tiki 16.2, any plugin using unified index search formatter and wikibuilder (aka filter, output, display, format, etc. wiki syntax, such as PluginPivottable ) now accepts {filter field=... editable=...} syntax to allow user enter a search value instead of hard-coding it. This means a trackerfilter-like functionality for unified index-based plugins.

You can see this feature in action if you apply profile Bug_Tracker_16

Therefore, this code:

{PIVOTTABLE(data="tracker:4" rows="bug_tracker_severity" cols="bug_tracker_bug_status" rendererName="Heatmap" aggregatorName="Count")}
  {filter field="tracker_field_bug_tracker_priority" editable="content"}
  {filter field="tracker_field_bug_tracker_assignee" editable="content"}
  {filter field="tracker_field_bug_tracker_summary" editable="content"}
{PIVOTTABLE}

Would produce the expected pivottable report, with some fields on top to allow the user to filter results before re-drawing the table or chart:

Click to expand
