Matomo Web analytics


"Matomo (formerlly known as Piwik) is a downloadable, open source (GPL licensed) real time web analytics software program. It provides you with detailed reports on your website visitors: the search engines and keywords they used, the language they speak, your popular pages… and so much more."
http://matomo.org/

Like Tiki, Matomo is written in PHP using a MySQL database.

To record visitors, visits and page views in Matomo, you must add a Tracking code in all your pages. Matomo recommend to use the standard JavaScript Tracking tag.

The documentation is here:
http://matomo.org/docs/javascript-tracking/

Copy the code from Matomo and paste in Admin -> Look & Feel -> General Layout or Customization (depends on your version of Tiki) -> Custom End of <body> Code surrounded by literal tags, as shown below:

In Tiki5 or newer
{literal}

<!-- Matomo-->
<script type="text/javascript">
...
...
...
</script>
<!-- End Matomo Tag -->

{/literal}


The literal tags indicate to the Smarty template engine not to interpret the code and to pass it as-is.

direct URL to access Custom End of <body> Code is: tiki-admin.php?page=look&cookietab=2


Only use the tracking code for users that do not have full admin rights
{if $tiki_p_admin neq 'y'}
 {literal}

  <!-- Matomo -->
  <script type="text/javascript">
   ...
   ...
   ...
  </script>
  <!-- End Matomo Tag -->

 {/literal}
{/if}

For better integration of Tiki with Matomo

To identify users logged into Tiki and track their activity, modify the default Matomo code to pass the Tiki username to Matomo . This is done by adding the following in Admin -> Look & Feel -> Custom End of <body> Code. Note that the Tiki username must be passed before 'trackPageView' in the default Matomo code to track user activity reliably.

Pass Tiki username to Matomo , see analytics of user activity in Matomo reports
{literal}
  <!-- Matomo -->
<script type="text/javascript">
...
...
...
{/literal}
{if $user}{literal}
  _paq.push(['setUserId', {/literal}'{$user}'{literal}]);{/literal}
{/if}{literal}
  _paq.push(['trackPageView']);
...
...
...
</script>
  <!-- End Matomo Tag -->
{/literal}

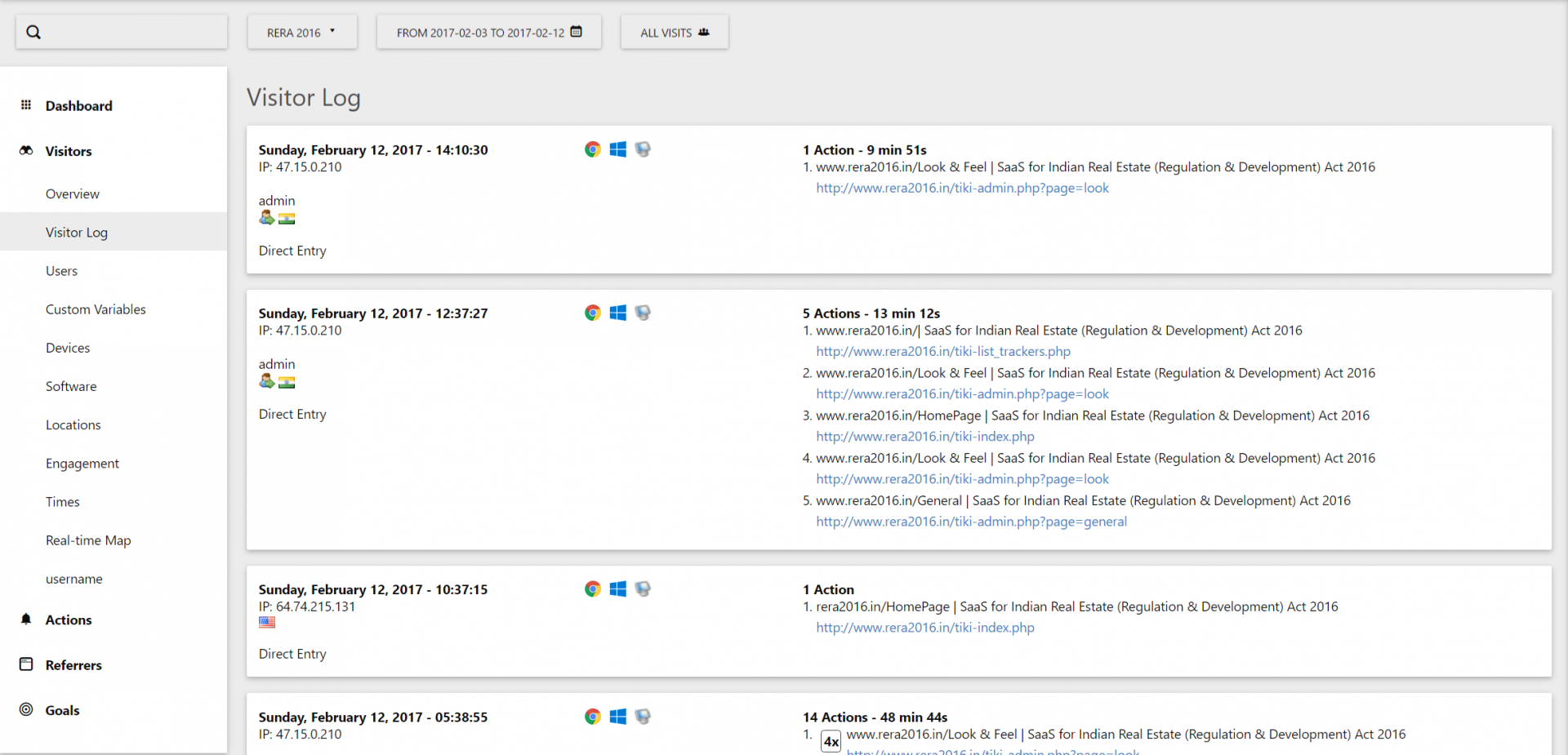

Matomo Visitor Log shows activity of Tiki user 'admin' in one session and an anonymous user in the session before that
Matomo Visitor Log shows activity of Tiki user 'admin' in one session and an anonymous user in the session before that


Embedding Matomo report on a Tiki Wiki page

It is possible to embed Matomo report into wiki page.

  • In Matomo Admin
    • Permission and User
    1. Go to setting, users.
    2. Set permission for anonymous so all the data will be public or create a specific user to create a token that will be used for authentication (recommended and explained here).
    3. In Manage Access give this user "View" permission for the website(s) you want the token to be used to share the report.
    • Report Selection and Credentials
    1. Click on the user icon (top right), select widget
    2. Select the kind of report you want to display and copy the HTML code found in the field "Embed Iframe" (at the bottom of the preview). Paste it in a text-editor.
    3. Add at the end of the "src" (it should start by "http://example.org...") the parameter to the API calls URLs that require authentication: "&token_auth=". Paste the token_auth you created for your specific user.

You have now all the necessary and basic code that should be placed in a Tiki Wiki page.

  • In Tiki
    1. Create or edit the page where you want to display the report.
    2. Set permission for your usage (it can be embedded inside group plugin for example).
    3. Insert an HTML plugin and paste the code you've prepared.
    4. Approve the plugin
    5. Tada !

Visits Summary, Visits Overview (with graph) for Doc.Tiki.org



Visitor Setting, Screen Resolution for Doc.Tiki.org



Actions, Pages for Doc.Tiki.org



Creating a Plugin for Tiki


Requirement

  1. Install on all page "JavaScript Tracking Code"
    <!-- Matomo-->
    <script type="text/javascript">
      var _paq = _paq || [];
      _paq.push(['trackPageView']);
      _paq.push(['enableLinkTracking']);
      (function() {
        var u="//domain_name/piwikwebsite_name/";
        _paq.push(['setTrackerUrl', u+'piwik.php']);
        _paq.push(['setSiteId', 1]);
        var d=document, g=d.createElement('script'), s=d.getElementsByTagName('script')[0];
        g.type='text/javascript'; g.async=true; g.defer=true; g.src=u+'piwik.js'; s.parentNode.insertBefore(g,s);
      })();
    </script>
    <noscript><p><img src="//localhost:8888/piwik/piwik.php?idsite=1" style="border:0;" alt="" /></p></noscript>
    <!-- End Piwik Code -->

    Installed at tiki-admin.php?page=look in the meantime


Notes:

(more to come...)

To-Do:

  • http vs https
  • Adding date range
  • Adding periods
  • Force height for specific widget
  • Set filtering and sort (&filter_sort_column=gt_ms)
  • Hide columns properly (&hideColumns=avg_time_on_page) set data to "-" but display the column.
  • Have the widget language set to Tiki language preferences.
  • Get 404 pages (http://piwik.org/faq/how-to/faq_60/)
  • Find is slow pages or slow query can be added to report
  • Verbose error (token hs or no server url error)
(more to come...)

Documentation available at : http://piwik.org/docs/embed-piwik-report/
